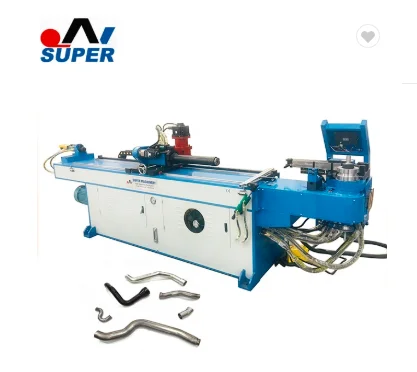

Sb-38nc pipe bender is an automatic hydraulic pipe bender, which mainly consists of electrical control system, hydraulic system and mechanical structure.Its working principle is the working instruction by electric control system of electric hydraulic pump fluid pressure transferred to the cylinder, and driven by the main oil cylinder rack driving wheel is equipped with bend modulus gears on the spindle, the spindle drive curved pipe die do circular motion, at the same time, also by liquid pressure source make stuffing oil cylinder and guide die cylinder will be bent pipe tightly holding in round pipe bending die, so in round pipe bending die rotates to achieve the purpose of bend pipe coil.Each part of the action sequence program by the electronic control system PLC programming control.
The machine adopts touch screen and interactive operation of man-machine interface, which is easy to understand.Its bending Angle and function setting are through the touch type input.The main functions are: 1. Operation mode: manual mode, semi-automatic mode, multi-angle mode; 2. Angle editing (setting). Each pipe fitting can be set for up to 9 turns.The minimum setting unit is 0.1 degree; 3. Clamping time can be set to ensure that the workpiece is firmly clamped before bending; 4. With the setting of slow bending Angle, the last several degrees of the fast bending can be set as slow bending to overcome the rebound, which can not only improve the production efficiency but also ensure the accuracy of bending Angle; 5. It has the function of setting the Angle of slow core removal, which can improve the roundness of the bending part and improve the quality of the bending pipe; 6. Can be set with or without the core, flexible use; 7. Error message display function on screen for operator to eliminate.
Maximum bending radius
Maximum bending Angle
Maximum oil pressure
Carbon steel pipe
Shanghai Qi Pang Industrial Co., LTD is a professional manufacturer which is specialized in making rolling ring linear drives , Wire straightener , Take-up Machine , Winding Machines , winding machine and coiling machine (traverse unit, rolling ring drive, linear actuators, linear motion assemblies).
Shanghai Qi Pang Industrial Co., LTD was established in 2013. Our company is a high-tech enterprise that develops and make the series polished shaft rolling ring drive and wire straightener earliest in China. The company is located in the JiaDing, Anting auto city, which is the world financial center in Shanghai. It is very convenient.
We always adhere to the principles of talent oriented and honest business since our company established .Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.
We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.
Packing & Delivery
A, Customer Make Wire Straightener
B, We can design and produce the wire straightener according to customer requirements.
1.Material ( steel,copper )
2.Diameter of steel wire or steel tube or copper tube
3.Operating speed ( m / min ) 10(m/min)
4.Single plane or double plane
5.If need qucik lever, if need guide roller, if need solid base
Equipment Reconstruction and Update
Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.
Q1. What is your terms of packing? A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
