SB-38NC copper and aluminium tube bending machine

  • >=1 Acres
    $9,785.00
Model Number:
SB-38NC
Lead Time:
Quantity(Acres) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Acres)
Customized packaging (Min. Order: 10 Acres)

More

Graphic customization (Min. Order: 10 Acres) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Type:
Feeder Machine
Use:
Wire straightening and cutting
Brand Name:
qipang
Voltage:
380V
Power(W):
4KW
Dimension(L*W*H):
3200*900*1300mm
Weight:
1000kg, 1000kg
Certification:
ISO9001
Key Selling Points:
High productivity
After Warranty Service:
Video technical support, Online support, Spare parts
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, farms, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
none
Showroom Location:
none
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
pipe bender
Model:
SB-38NC
motor power:
4.KW
Size:
3200*900*1300mm
Maximum oil pressure:
14mpa
Maximum bending radius:
250mm
Maximum bending Angle:
190
Warranty:
1 Year
Supply Ability
Supply Ability:
52 Acre/Acres per Week
Packaging & Delivery
Packaging Details
Wooden box packaging
Port
shanghai
Lead Time :
Quantity(Acres) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

Title goes here.

SB-38NC copper and aluminium tube bending machine


S-singal

B-bend

38-pipe diameter

NC-Automatic


Sb-38nc pipe bender is an automatic hydraulic pipe bender, which mainly consists of electrical control system, hydraulic system and mechanical structure.Its working principle is the working instruction by electric control system of electric hydraulic pump fluid pressure transferred to the cylinder, and driven by the main oil cylinder rack driving wheel is equipped with bend modulus gears on the spindle, the spindle drive curved pipe die do circular motion, at the same time, also by liquid pressure source make stuffing oil cylinder and guide die cylinder will be bent pipe tightly holding in round pipe bending die, so in round pipe bending die rotates to achieve the purpose of bend pipe coil.Each part of the action sequence program by the electronic control system PLC programming control.


model
SB-38NC
Maximum bending radius
250mm
weight
1000kg
Maximum bending Angle
190
size
3200*900*1200mm
Maximum oil pressure
14mpa
motor
4kw
Carbon steel pipe
Ø38×2.0t

Title goes here.

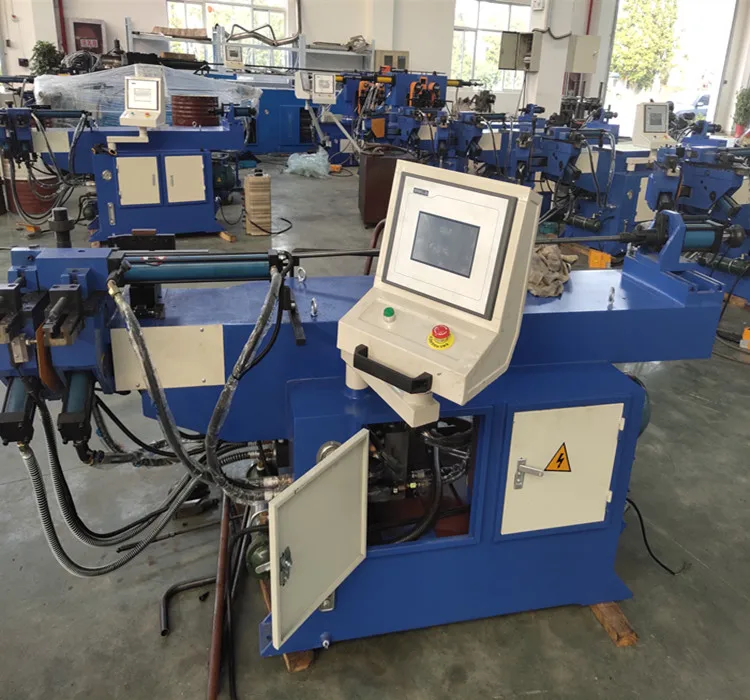

The machine adopts touch screen and interactive operation of man-machine interface, which is easy to understand.Its bending Angle
and function setting are through the touch type input.The main functions are:
1. Operation mode: manual mode, semi-automatic mode, multi-angle mode;

2. Angle editing (setting). Each pipe fitting can be set for up to 9 turns.The minimum setting unit is 0.1 degree;

3. Clamping time can be set to ensure that the workpiece is firmly clamped before bending;

4. With the setting of slow bending Angle, the last several degrees of the fast bending can be set as slow bending to overcome therebound, which can
not only improve the production efficiency but also ensure the accuracy of bending Angle;

5. It has the function of setting the Angle of slow core removal, which can improve the roundness of the bending part and improve the quality of the bending pipe;

6. Can be set with or without the core, flexible use;

7. Error message display function on screen for operator to eliminate.
Detailed Images

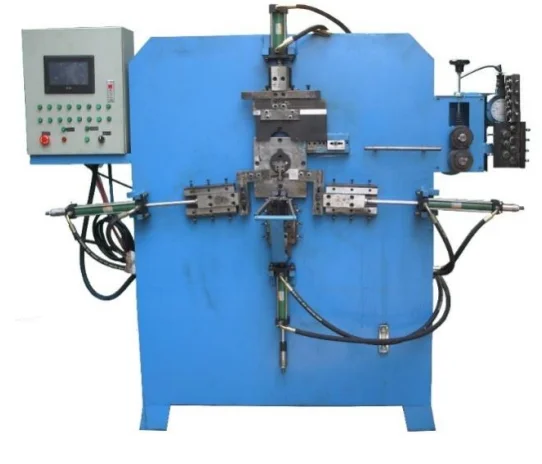

Other Products
Our Company

Shanghai Qi Pang Industrial Co., LTD is a professional manufacturer which is specialized in making rolling ring linear drives , Wire straightener , Take-up Machine , Winding Machines , winding machine and coiling machine (traverse unit, rolling ring drive, linear actuators, linear motion assemblies).



Shanghai Qi Pang Industrial Co., LTD was established in 2013. Our company is a high-tech enterprise that develops and make the series polished shaft rolling ring drive and wire straightener earliest in China. The company is located in the JiaDing, Anting auto city, which is the world financial center in Shanghai. It is very convenient.



We always adhere to the principles of  talent oriented and honest business  since our company established .Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.



We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.

Packing & Delivery
Our Service

A, Customer Make Wire Straightener



B, We can design and produce the wire straightener according to customer requirements.



1.Material ( steel,copper )



2.Diameter of steel wire or steel tube or copper tube



3.Operating speed ( m / min ) 10(m/min)



4.Single plane or double plane



5.If need qucik lever, if need guide roller, if need solid base



Equipment Reconstruction and Update



Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
