qipang Automatic winding machine for cable coil winder antuo coiling and packing

FOB Reference Price:Get Latest Price
$1,300.00 - $1,500.00 / Acre | 1 Acre/Acres (Min. Order)
Shipping:
Support Express · Sea freight
Lead Time:
Quantity(Acres) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Acres)
Customized packaging (Min. Order: 1 Acres)

More

Graphic customization (Min. Order: 1 Acres) Less
Samples:
$1,300.00 /Acre | 1 Acre (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China, Shanghai, China
Brand Name:
cable wire coiling and packing machine, qipang
Model Number:
cable wire coiling and packing machine
Usage:
Winding
Condition:
new
Application:
Winding
Voltage:
380V/220V
Warranty:
1 Year
Dimension(L*W*H):
850mm*650mm*700mm
Power(W):
550W
Supply Ability
Supply Ability:
100 Acre/Acres per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Acres) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

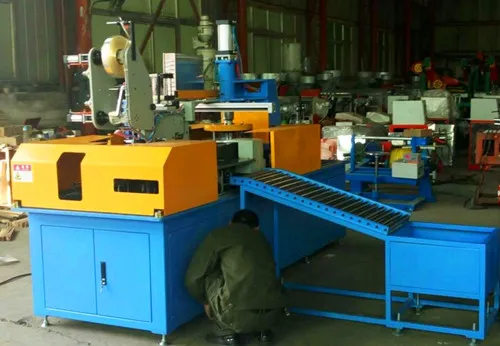

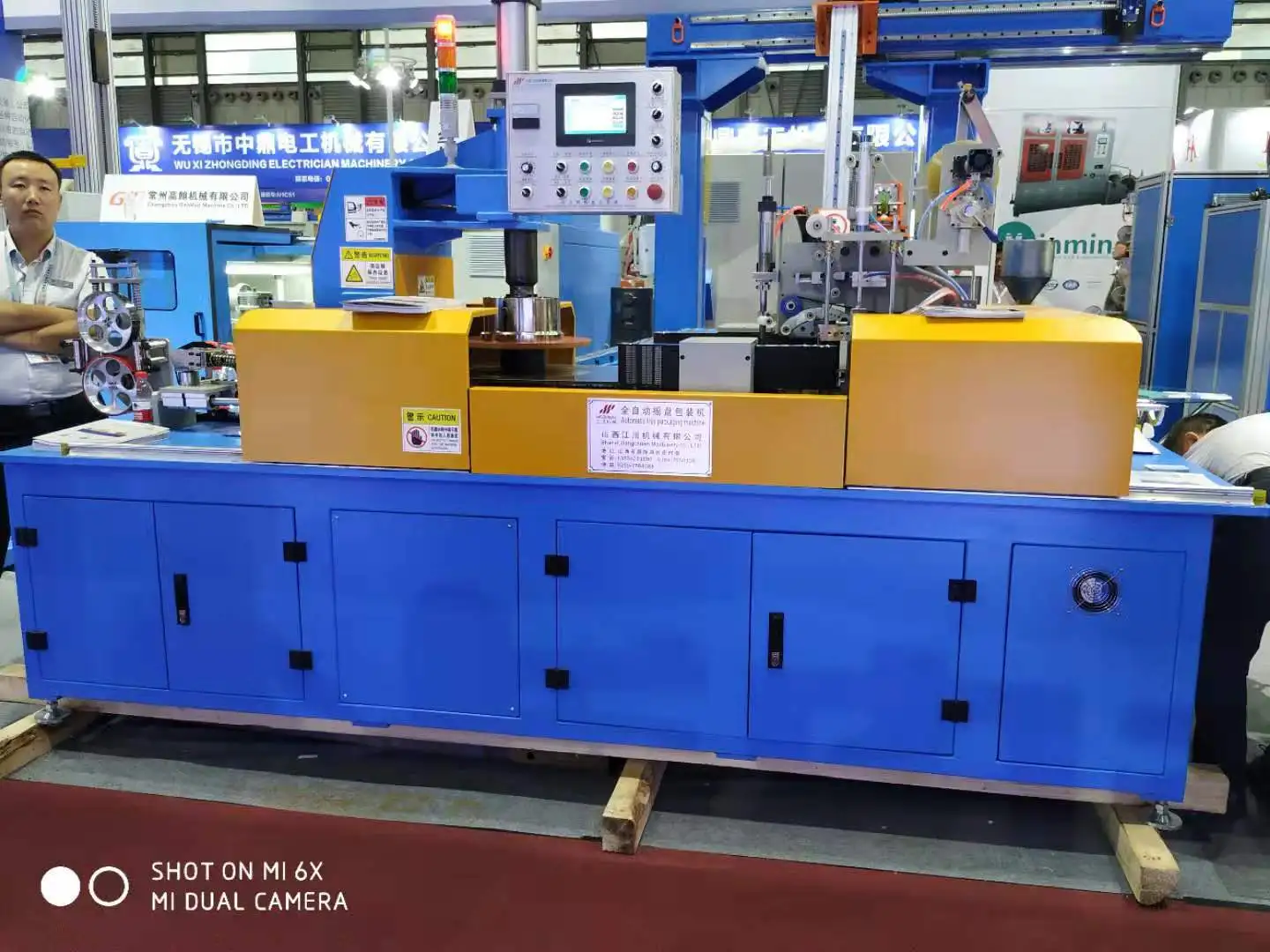

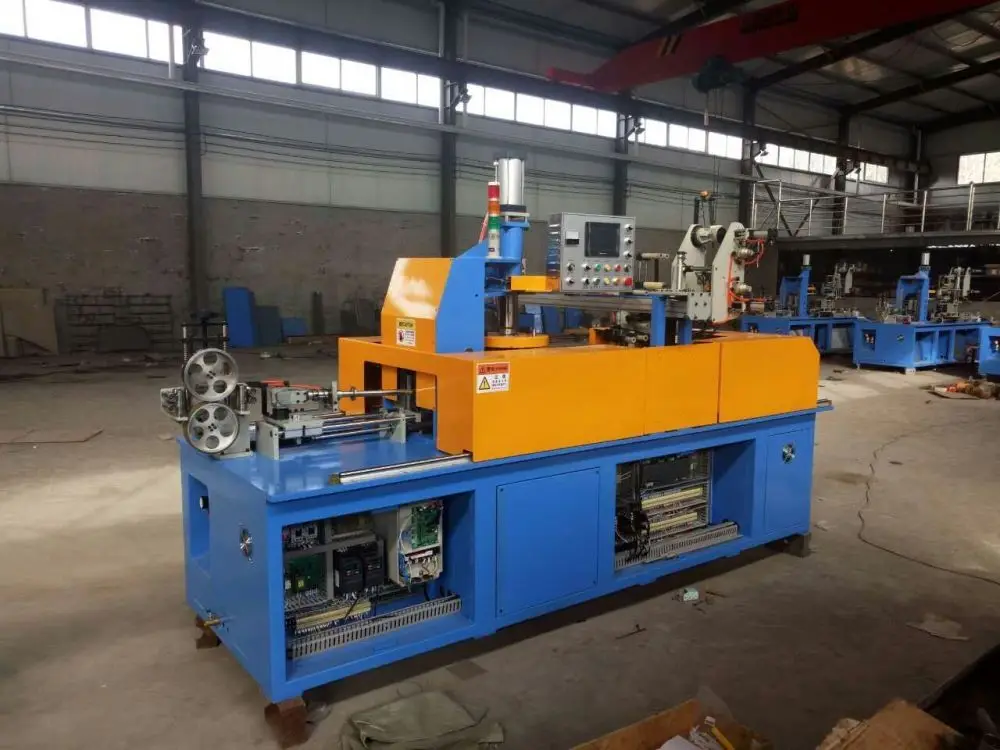

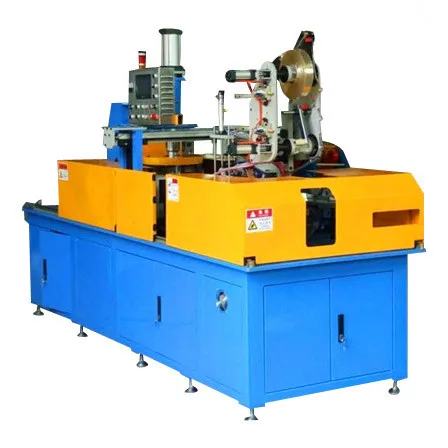

qipang Automatic winding machine for cable coil winder antuo coiling and packing
Product parameters
Type
High
External diameter
Inner diameter
Wire diameter
Packing material
QP1040
50-100
130-200
1.5-10
220*400
PVC/PE
QP1246
50-120
200-460
140-220
1-12
PVC/PE
QP1860
80-180
200-250
5-18
250-600
PVC/PE
Purpose of the equipment: it is used for automatic winding and bagging of all kinds of electric wires and cables.
Packaging materials: PVC film /PE film /PP film/paper tape, woven tape Features: the machine is controlled by Siemens PLC microcomputer + servo system + precise two-way induction cylinder, which is composed of meter counting device, feeding device, cutting line mechanism, automatic winding and feeding mechanism.Line spacing
can be set according to the line diameter, the length of the volume, the number of volumes can also be set arbitrarily, by the touch screen display, the height of the volume can be adjusted, the operation is simple, more human, the shape of the volume is flat and beautiful, to avoid the confusion caused by human factors roll quality problems.
line diameter, the length of the volume, the number of volumes can also be set arbitrarily, by the touch screen display, the height of the volume can be adjusted, the operation is simple, more human, the shape of the volume is flat and beautiful, to avoid the confusion caused by human factors roll quality problems.
Feature
It can be supplied by the discharge machine or directly connected to the extruder. After winding by the arm out, by manual pick up. This machine adopts servomotor wiring system, the winding is beautiful. The screen touch - machine interface is used to operate the panel, the operation is friendly and simple. Microcomputer memory can store a variety of different wire reel specifications, when you need to change the product specifications, as long as read the stored specification data can be, no need to enter again, can be produced immediately. This machine has automatic error detection function, when there is a problem will send an alarm to remind the operator
Products Description
Other product
ABOUT US
FAQ
Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.

Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine
